Ball Float Steam Trap

The more your steam pressure varies, the more you need Fangwen Ball Float Steam Traps

When steam pressure may vary from maximum steam supply pressure to vacuum, Fangwen Ball Float Steam Traps are your most energy-efficient choice. Our line of Ball Float Steam Traps brings Fangwen performance, dependability and long life to trapping services requiring continuous drainage with high air venting capacity. Thanks to separate orifices for condensate and air, they provide continuous condensate drainage and air venting-even under conditions of zero pressure.

All the benefits detailed here have been designed into Fangwen Ball Float Steam Traps through long experience in the manufacture of pressure float-type traps. They assure you of optimum operating efficiency for long periods with minimum trouble.

How they work

Fangwen Ball Float Steam Traps are mechanical units that operate on density principles. The float valve operates on the density principle. A level connects the ball float to the valve and seat. Once condensate reaches a certain level in the trap, the float rises, opening the orifice and draining condensate. A water seal formed by the condensate prevents live steam loss

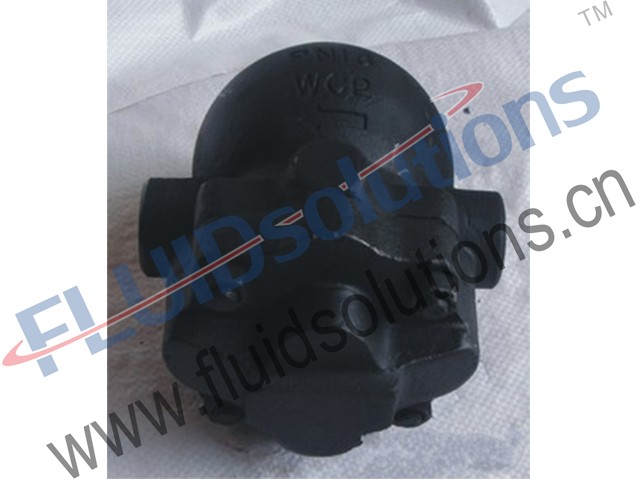

Thread Ball Float Steam Trap

Description

As standard, the Thread Ball Float Steam Trap is supplied with a right to left (R-L) flow configuration having horizontal connections and has provision for adding an air venting option; Please note that the unit is supplied with a 戮" thread connection in the cover with a plug screwed into the fitting. It has been designed for floor mounting and is suitable for most high-pressure process and drainage applications. Its simple robust ball float mechanism ensures excellent resistance to water hammer. All internals are easily accessible for in-line maintenance and a drain port allows full body drainage.聽

It has a large maintainable strainer screen that extends service intervals and is located in an accessible flanged chamber.

Available options

Fangwen fitted external BDV2 air vent having a 陆" NPT screwed connection (a 陆" BSP screwed connection is used on the PN100 version)

Fangwen fitted internal fixed bleed for continuous discharge of air and other incondensable gasses

Note: As standard the unit is supplied with a 戮" thread connection in the cover with a " BSP screwed plug fitted.

Standard

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC.

Certification

This product is available with certification to EN 10204 3.1 for the body, cover, fasteners, screen flange and BDV2 air vent.

Note: All certification / inspection requirements must be stated at the time of order placement.
