Marine Gate Valve

Fangwen Marine Gate Valves are made of Cast Steel, Cast iron or Cast Bronze. Standards to JIS, ASME or Equivalents. Sizes from DN15 through DN300. Ratings available in 5K, 10K, 16K, 20K, etc.

» Marine Cast Steel Gate Valve 10K, JIS F7366

» Marine Cast Iron Gate Valve 5K, JIS F7363

» Marine Cast Iron Gate Valve 10K, JIS F7364

» Marine Cast Iron Gate Valve 16K, JIS F7369

» Marine Bronze Gate Valve 5K JIS F7367

» Marine Bronze Gate Valve 10K JIS F7368

Standards Compliance:

» Inspect & Test: JIS 7400-1996

» Flanged Dimension to JIS B2220 - 5K, 10K or 16K

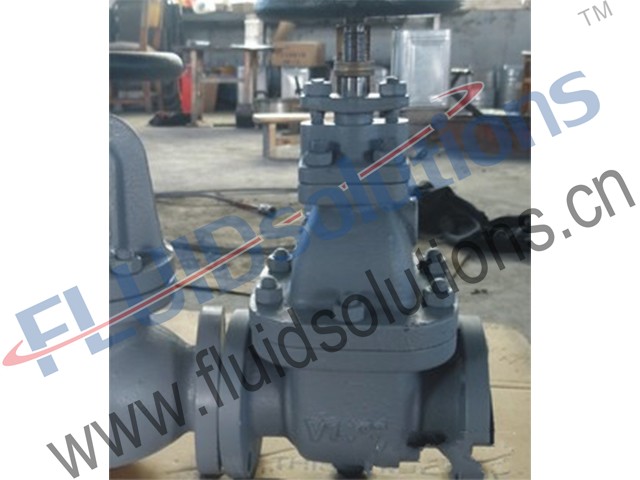

Marine Cast Iron Gate Valve

Marine Cast Iron Gate Valve, Union Cover Inside Screw, Rising Stem, Solid

Wedge, Non Asbestos Packings, Female NPT, BS3464 Design.

TECHNICAL SPECIFICATION

» Cast Iron Non-Rising Stem Gate Valve, BS3464, PN10, DN50~DN300

-Pn10 Flange to DIN2532

-PN16 Flange to DIN2533

-Face-to-face dimension DIN3202 F4、F5

-PN10 Maximum working pressure 10bar(1.0Mpa)

-PN16 Maximum working pressure 16bar(1.6Mpa)

-Maximum working temperature 120℃

» Cast Iron Gate Valve NRS Solid Wedge Disc Flanged Ends, BS5150 PN16&BS5163

-Conforms to BS5150 PN16 & Bs5163

-Flanges drilled to Bs4504

-Fase to face dimensions conform to BS5150 Series 3

-Nominal pressure:1.6Mpa

-Seat Test pressure:1.6Mpa

-Shell Test pressure:2.4Mpa

-Suitable Temperature ≤232 C

-Suetable media: water, oil. Gas

» Cast Iron Non-Rising Stem Gate Valve, DIN3352 PN10/PN16

-Pn10 Flange to DIN2532

-PN16 Flange to DIN2533

-Face-to-face dimension DIN3202 F4、F5

-PN10Maximum working pressure 10bar(1.0Mpa)

-PN16Maximum working pressure 16bar(1.6Mpa)

-Maximum working temperature 120℃

» Cast Iron Gate Valve NRS Solid Wedge Disc Flanged Ends, MSS SP-70 B16

-Conforms to MSS SP-70

-Flanges drilled to ANSI B16.1(125#)

-Fase to face dimensions conform to ANSI B16.10(125#)

-Working pressure:125#, 200WOG

-Suitable media: water, oil, gas

-Construction available in all iron

» Cast Iron Gate Valve OS&Y solid Wedge Disc Flanged Ends,BS5150PN16&BS5163

-Conforms to BS5150 PN16 & Bs5163

-Flanges drilled to BS4504

-Fase to face dimensions conform to BS5150 Series 3

-Nominal pressure:1.6Mpa

-Seat Test pressure: 1.6Mpa

-Shell Test pressure: 2.4Mpa

-Suitable Temperature≤232℃

-Suetable media: water, oil. Gas

» Cast Iron Rising Stem Solid Wedge Gate Valve, DIN3352 PN16

-Design: DIN3352

-Face to Face: DIN3202 F5

-Flanges: EN 1092-2 Pn16

-Hydraulic test to ISO 5208

Seat Test pressure:17.6Mpa

Shell Test pressure:24Mpa

Operating torque test

» Cast Iron Gate Valve OS&Y Solid Wedge Disc Flanged Ends, MSS SP-70 B16

-Conforms to MSS SP-70

-Flanges drilled to ANSI B16.1(125lb)

-Fase to face dimensions conform to ANSI B16.10(125lb)

-Working pressure:125S,200WOG with MSS SP-70

-Suitable media: water,oil,gas

-Construction available in all iron

-Yoke construction for sizes 50,65 & 80 have 1 piece bonnet/yoke

Size Range

DN50 – DN 300(2” – 12”)

Maximum Working Pressure

Class 125 or PN 16

Materials

Body: GG25 Grey Cast lron

Bonnet: GG25 Grey Cast lron

Stem: X20Cr13 Stainless Steel

Yoke Nut: CuZn40pb2 Brass

Seat Sealing: CuZn40pb2 Brass

Wedge Sealing: CuZn40pb2 Brass

Handwheel: GG25 Grey Cast lron

Gland Packing: Lubricated Asbestos
