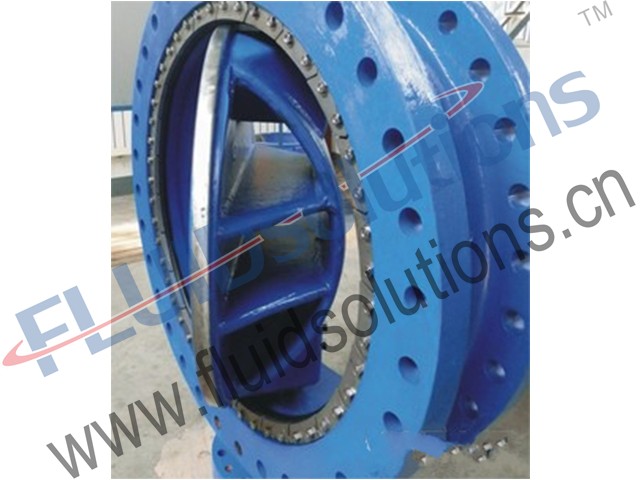

AWWA C504 Butterfly Valve

Fangwen AWWA C504 Butterfly valves are used for shut off of clean and dirty water and gases. Offset disc design, corrosion-resistant shaft, stainless steel disc edge, and self-compensating shaft seals are features on all AWWA butterfly valves. Molded-in body seat with disc locators provides positive sealing and longer seat life on sizes 3 - 20" (80 - 500mm). Large AWWA butterfly valves, 24" and larger (600mm and larger) feature adjustable, replaceable seat, non-hollow disc structure and rubber seat retained within a dovetail groove in the valve body and locked in place by an epoxy wedge.

◆ Valve Bodies: Valve bodies shall be constructed of ASTM A126, Class B cast iron for flanged valves or ASTM A48, Class 40 for wafer style. Flanged valves shall be fully faced and drilled in accordance with ANSI Standard B16.1, Class 125.

◆Valve Seats: Rubber body seats shall be of one piece construction, simultaneously molded and bonded into a recessed cavity in the valve body. Seats may not be located on the disc or be retained by segments and/or screws. For wafer style valves, the seat shall cover the entire inner surface of the valve body and extend over the outside face of the valve body to form a flange gasket.

◆ Valve Bearings: Valve bearings shall be of a self-lubricating, nonmetallic material to effectively isolate the disc-shaft assembly from the valve body. Metal-to-metal thrust bearings in the flow stream are not allowed.

◆ Valve Disc: The disc shall be a lens-shaped design to afford minimal pressure drop and line turbulence. Materials of construction shall be ASTM A126, Class B cast iron disc with a stainless steel type 316 edge Discs shall be retained by stainless steel pins which extends through the full diameter of the shaft to withstand the specified line pressure up to valve rating and the torque required to operate the valve. Disc stops located in the flow stream are not allowed.

◆ Valve Shafts: Valve shafts shall be of stainless steel type 304. At the operator end of the valve shaft, a packing gland utilizing "V" type chevron packing shall be utilized. "O" ring and "U" cup packing is not allowed.

All valves shall be comply with the following details.

» Standards: AWWA C504

» Size Range: 24”(DN600)~144”(DN3600)

» Pressure Rating: 25 Psi to 250 Psi

» Classifications: 25A, 25B, 75A, 75B, 150A, 150B and 250B

» Laying Lengths: AWWA C504 Short and Long Bodies

» Materials: Ductile Iron

» Connection Flange Options: ANSI/ASME B16.1 CLASS125, ANSI/ASME B16.5 CLASS 150, AWWA C207, ANSI/AWWA C111/A21.12(MJ)

» Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic

Fangwen offers AWWA C504 Butterfly Valves including, but not limited to

▲ AWWA C504 Flanged Butterfly Valve ▲ AWWA C504 Wafer Butterfly Valve

▲ AWWA C504 Mechanical Joint Butterfly Valve

▲ AWWA C504 Grooved Butterfly Valve ▲ AWWA C504 Buried Service Buttefly Valve

AWWA C504 Buried Service Buttefly Valve

Fangwen AWWA C504 Buried Service Buttefly Valves shall be manufactured in accordance with the latest revision of AWWA C504, Class 150B and conform to NSF Standard 61.

Fangwen AWWA C504 Buried Service Buttefly Valves line has completed the AWWA Proof of Design tests, and every valve is tested at the factory. Bidirectional leakage testing is available upon request.

All valves shall be comply with the following details.

» Standards: AWWA C504

» Size Range: 24”(DN600)~144”(DN3600)

» Pressure Rating: 25 Psi to 250 Psi

» Classifications: 25A, 25B, 75A, 75B, 150A, 150B and 250B

» Laying Lengths: AWWA C504 Short and Long Bodies

» Materials: Ductile Iron

» Connection: AWWA C504 Grooved Butterfly Valve

» Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
